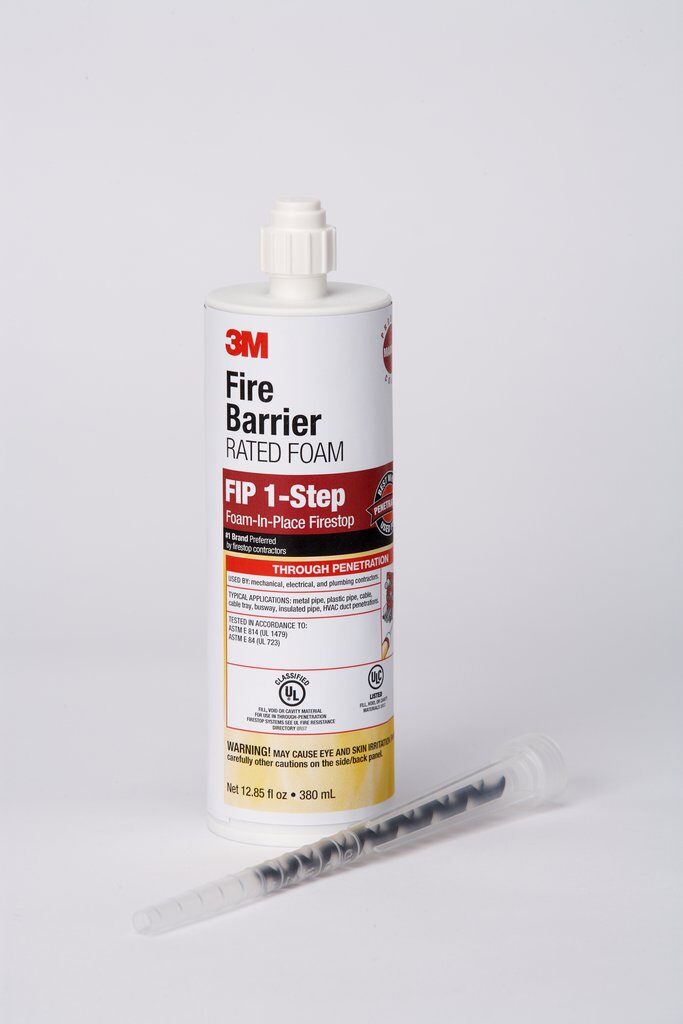

3M™ 7100020738 Fire Barrier Rated Foam, Cartridge Container, Composition: Part A: Polymer, Non-Halogen Flame Retardant, Phosphate, Smoke Suppressant, Water, Catalyst, Siloxanes, Part B: POLYMETHYLENE POLYPHENYLENE, ISOCYANATE, Red to Brown, 50 to 120 deg F

MMM54925 MFG #: FIP1-STEP/ 7100020738
$85.99 / EACH
  • Color: Red to Brown
  • Container Size: 12.85 fl-oz
  • Container Type: Cartridge
  • Curing Time: 2 min
  • Flash Point: Part B: >=220 deg C
  • Form: Liquid
  • Odor/Scent: Earthy
  • pH Range: Part A: 6 to 8
  • Specific Gravity: Part A: 1.3, Part B: 1.2
  • Temperature Rating: 50 to 120 deg F
  • Viscosity Rating: Part A: 250 to 350 mPa-s, Part B: 600 to 700 mPa-s
  • VOC Content: Part A: <10 g/L, Part B: <1 g/L
3M™ 7100020738, Cartridge Container, 12.85 fl-oz Container, Composition: Part A: Polymer, Non-Halogen Flame Retardant, Phosphate, Smoke Suppressant, Water, Catalyst, Siloxanes, Part B: POLYMETHYLENE POLYPHENYLENE, ISOCYANATE, Liquid Form, 2 min Curing, Red to Brown, Earthy Odor/Scent, 50 to 120 deg F, Part A: 1.3, Part B: 1.2 Specific Gravity, Part B: >=220 deg C Flash Point, Part A: 6 to 8 pH, Part A: <10 g/L, Part B: <1 g/L VOC, Part A: 250 to 350 mPa-s, Part B: 600 to 700 mPa-s Viscosity, Applicable Materials: Blank Openings, Metal Pipe, Cables, Cable Tray, Insulated Pipe and Combination Penetrations
QTY
  • Application
  • Item Features
  • Standards
Blank Openings, Metal Pipe, Cables, Cable Tray, Insulated Pipe and Combination Penetrations Applications
  • Firestop tested and rated up to 2 hr
  • Sag-resistant, quick curing formulation that expands up to 5 times in volume during installation
  • Intumescent foam expands when exposed to fire
  • Re-enterable and repairable foam remains pliable after installation
  • Excellent adhesion and does not require backing material in wall or floor applications
  • Paintable with primer
  • FIP 1-step shelf life is 16 months in original unopened containers from date of packaging when stored above 68 deg F and below 90 deg f
  • STC acoustic barrier: 57 when tested in STC 57 rated wall assembly
  • <1 cfm/sq-ft air leakage
ACGIH Approved|ASTM Certified|ECCN: EAR99|NFPA 5000 Certified|101|IBC Certified|IRC Certified|IFC Certified|IPC Certified|IMC Certified|NEC Certified|NFPA 70|NFPA 101|NBCC Certified|UL Listed|CAN/ULC S115
